3UA SERIES |
|
|
|
APPLICATION

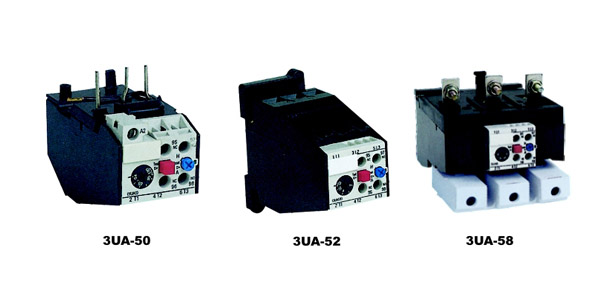

3UA series thermal relay is suitable for using is power system with AC 50Hz,rated operation voltage up to 660V and 1000V ,in main circuit ,current form 0.1A to 630 A,It is used to protect AC three-phase asynchronous motor against overload and open-phase.The relays have the rest pushbutton for breaking NC contacts and the operating indication and free trip characteristics.The product also can be supplied with protecting case to ensure safety .The products can be plugged in the contactor and installed independently or mounted by rail.
SPECIFICATION
Rated operating current(A) |
Rated insulation voltage(V) |
Current setting range (A) |
3UA50 |
12.5 |
660 |
0.1~0.16 |
0.16~0.25 |
0.25~0.4 |
0.32~0.63 |
0.63~0.1 |
0.8~1.25 |
1~1.6 |
1.25~2 |
1.6~2.5 |
2~3.2 |
2.5~4 |
3.2~5 |
4~6.3 |
5~8 |
6.3~10 |
8~12.5 |
3UA52 |
25 |
660 |
0.1~0.16 |
0.16~0.25 |
0.25~0.4 |
0.4~0.63 |
1.63~1 |
0.8~1.25 |
1~1.6 |
1.25~2 |
1.6~2.5 |
2~3.2 |
2.5~4 |
3.2~5 |
4~6.3 |
5.8 |
6.3~10 |
8~12.5 |
10~16 |
12.5~20 |
16~25 |
|
3UA54 |
32 |
660 |
4~6.3 |
6.3~10 |
10~16 |
12.5~20 |
16~25 |
20~32 |
3UA58 |
80 |
1000 |
16~25 |
20~32 |
25~40 |
32~50 |
40~57 |
50~63 |
57~70 |
63~80 |
3UA59 |
63 |
660 |
0.1~0.16 |
0.16~0.25 |
0.25~0.4 |
0.4~0.63 |
1.63~1 |
0.8~1.25 |
1~1.6 |
1.25~2 |
1.6~2.5 |
2~3.2 |
2.5~4 |
3.2~5 |
4~6.3 |
5~8 |
6.3~10 |
8~12.5 |
10~16 |
12.5~20 |
16~25 |
20~32 |
25~40 |
32~45 |
40~57 |
50~63 |
3UA62 |
180 |
|
55~80 |
63~90 |
80~110 |
90~120 |
110~135 |
120~150 |
135~160 |
150~180 |
3UA66 |
400 |
1000 |
80~125 |
125~200 |
180~250 |
200~320 |
250~400 |
|
3UA68 |
630 |
1000 |
320~500 |
400~630 | |
|
|
|
|
