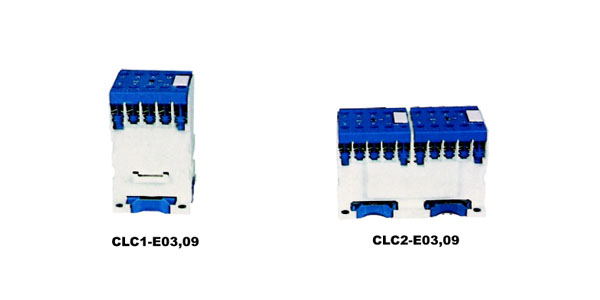

CLC1-E Series AC Contactor|MOLLER ELECTRIC CO.,LTD

Home

Products

Specifications:

For motor control,from 6 to 630A(AC)
for the control of distribution circuits, from 16 to 1000A(AC-1)
Control circuit:d.c

Standard power rating of 3-phase motor 50-60Hz jin category AC-3 220V 380V 660V 203V 400V 415V 440V 500V 690V						Rated operating current AC-3 AC-1 up to Θ≤40℃ 440		Rated nonconductive voltage	Instantaneous auxiliary contacts	Basic reference. Complete with code indicating control circuit voltage(2) Fixing(1)
KW	KW	KW	KW	KW	KW	A	A	V
1.5	20	20	3	3	3	6	16	660	1 -	CLC1-EC03*
									- 1	CLC1-EC09*
2.2	4	4	4	4	4	9	16	660	1 -	CLC1-EC03*
									- 1	CLC1-EC09*
