CF360 Residual Current Circuit Breaker |
 |
|
|
|
Application: |
|
The RCCB is in conformity with the standard of IEC61008. The RCCB can cut off the fault circuit immediately on the occasion of shock hazard of earth leakage of trunk. Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.
The RCCB is mainly suitable for use in varieties of plants and enterprises, building construction 1 phase 230V and 3 phase 400V 50/60Hz. RCCB is not suitable for use on DC pulse system.
|
|
Application: |
| Nuber of poles |
2P,4P |
| Rated Current(A) |
16,20,25,32,40,50,63,80,100 |
| Rated Residual Operating Current(I¡÷n)(mA) |
10,30,100,300,500 |
| Rated Residual Non-operation Current(I¡÷no)(mA) |
¡Ü0.5I¡÷n |
| Rated Voltage(V) |
AC 230/240 |
| AC400/415 |
| Residual operating Current Scope |
0.5I¡÷n~I¡÷n |
| Residual Current off-time |
¡Ü0.3S |
| Short Circuit Capacity(Icu) |
3000A |
| Endurance |
4000 |
| Protection Degree |
IP20 | |
|

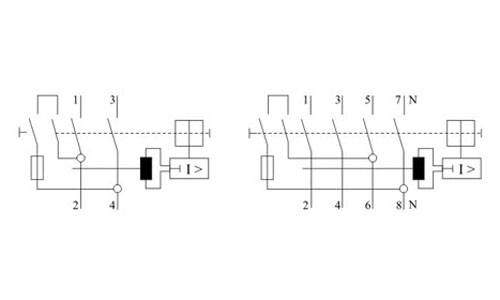

OPERATION PRINCIPLE: |
|
|

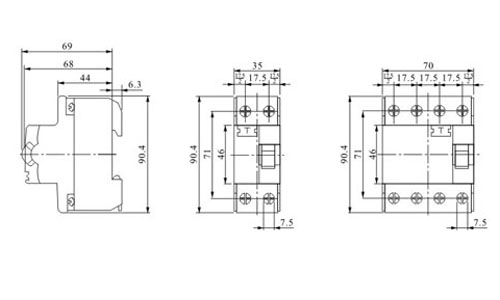

OVERALL AND MOUNTING DIMENSIONS(UNIT:MM) : |
|
 | | |
|
|
|
|
