1..Preferable electrical appliance function
2.Reliable insulation
3.Superior hermetic sealing
4. Excellent heat /cold proof ,waterproof ,Anti-aging ,
5.widely used at the field of electric power, electronic, petroleum,
chemical engineering, construction and communication
0.6/1 kV low-voltage products of cable termination are mainly and universally applied to dealing with disconnection place of Cable below 1kV. In cable cores, products are classified single core, threecores, four cores and five cores etc.
Application: Airic Low-voltage products of heat shrinkable termination are suit for dealing with the end of cable disconnection of 1kV.

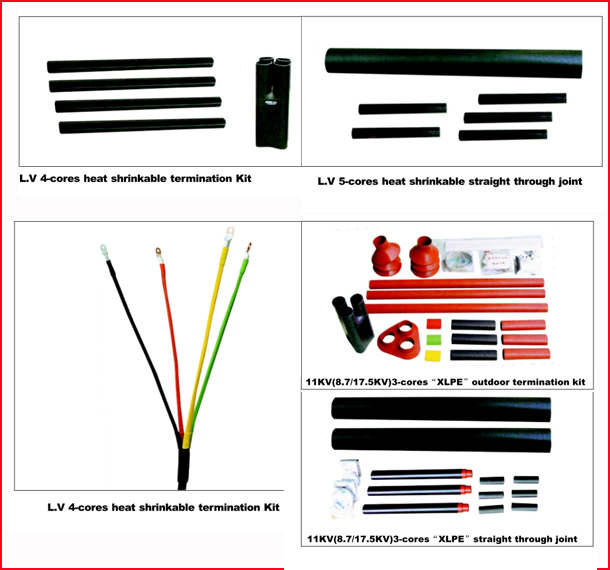

1KV heat shrinkable cableoutdoor/indoor termination and joint
Tecinical Data
|
Items |
Typical data |
Items |
Typical?data |
|
Ac voltage withstand |
2.5KV |
Hardness |
80(Shoea A ) |
|
Shrink temperature |
120-140¡ãC |
Tensite strength |
12Mpa |
|
Shrink ration |
250% |
Elongation at break |
300% |
|
Longitudinal shrinkable |
¡À5% |
Breakdown?strength |
¡Ý20KV/mm |
|
Description of Goods |
Specification |
The Applicable Cable Section
(mm2) |
Description of Goods |
Specification |
The Applicable Cable Section
(mm2) |
|
2-core termination kits |
SY-1/2.0 |
10-16 |
2-core straight through joint |
SY-1/2.0 |
10-16 |
|
SY-1/2.1 |
25-50 |
SY-1/2.1 |
25-50 |
|
SY-1/2.2 |
70-120 |
SY-1/2.2 |
70-120 |
|
SY-1/2.3 |
150-240 |
SY-1/2.3 |
150-240 |
|
3-core termination kits |
SY-1/3.0 |
10-16 |
3-core straight through joint |
SY-1/3.0 |
10-16 |
|
SY-1/3.1 |
25-50 |
SY-1/3.1 |
25-50 |
|
SY-1/3.2 |
70-120 |
SY-1/3.2 |
70-120 |
|
SY-1/3.3 |
150-240 |
SY-1/3.3 |
150-240 |
|
4-core termination kits |
SY-1/4.0 |
10-16 |
4-core straight through joint |
SY-1/4.0 |
10-16 |
|
SY-1/4.1 |
25-50 |
SY-1/4.1 |
25-50 |
|
SY-1/4.2 |
70-120 |
SY-1/4.2 |
70-120 |
|
SY-1/4.3 |
150-240 |
SY-1/4.3 |
150-240 |
|
5-core termination kits |
SY-1/5.0 |
10-16 |
5-core straight through joint |
SY-1/5.0 |
10-16 |
|
SY-1/5.1 |
25-50 |
SY-1/5.1 |
25-50 |
|
SY-1/5.2 |
70-120 |
SY-1/5.2 |
70-120 |
|
SY-1/5.3 |
150-240 |
SY-1/5.3 |
150-240 |
|
