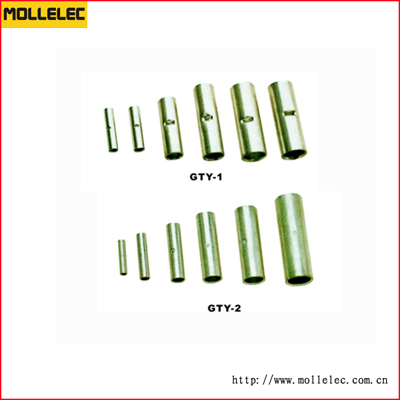

GTY Copper Connecting Tube |
 |
|
|
These products are applicable for the cirular wire,hemicydo wire with power supply cable in distribution equipment. They are made of with higher 99.9 percent pure copper tube T2 and coated with tin.

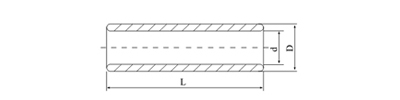

| Type |
D(mm) |
d(mm) |
L(mm) |
| GTY-1.5 |
3.7 |
1.8 |
20 |
| GTY-2.5 |
4 |
2.5 |
20 |
| GTY-4 |
4.8 |
3.1 |
20 |
| GTY-5.5 |
5.5 |
3.8 |
25 |
| GTY-10 |
6.8 |
4.8 |
30 |
| GTY-16 |
7.5 |
5.5 |
35 |
| GTY-25 |
9 |
7 |
40 |
| GTY-35 |
10.5 |
8.2 |
45 |
| GTY-50 |
12.5 |
9.8 |
50 |
| GTY-70 |
14.5 |
11.5 |
55 |
| GTY-95 |
17.5 |
13.5 |
60 |
| GTY-120 |
19.5 |
15 |
65 |
| GTY-150 |
21 |
16.5 |
70 |
| GTY-185 |
23.5 |
18.5 |
75 |
| GTY-240 |
26.5 |
21 |
80 |
| GTY-300 |
30 |
24 |
85 |
| GTY-400 |
34 |
27 |
90 |
| GTY-500 |
38 |
30 |
100 |
| GTY-630 |
45 |
35 |
110 |
| GTY-800 |
50 |
39 |
150 |
| GTY-1000 |
56 |
44 |
170 |
|
|
|
|
|
