Fuse Holder

 Fuse Holder
Add to Inquiry Basket
print this page Print This Page
live messenger Live Messenger
skype me Skype Me
e-mail us caleb@mollelec.com.cn


Specifications:
RT18

Type Assorted Fuse Rated Voltage (V) Rated Current (A) Weight (kg) Dimension(mm)
A B C D E
RT18-32 1P 10 x 38 380 32 0.075 82 78 35 63 18
RT18-32 2P 32 0.15 82 78 35 63 36
RT18-32 3P 32 0.22 82 78 35 63 54
RT18-63 1P 14 x 51 63 0.18 106 103 35 80 26
RT18-63 2P 63 0.36 106 103 35 80 52
RT18-63 3P 63 0.54 106 103 35 80 78
RT18-32 X 1P 10 x 38 32 0.075 82 78 35 63 18
RT18-32 X 2P 32 0.15 82 78 35 63 36
RT18-32 X 3P 32 0.22 82 78 35 63 54
RT18-63 X1P 14 x 51 63 0.18 106 103 35 80 26
RT18-63 X2P 63 0.36 106 103 35 80 52
RT18-63 X3P 63 0.54 106 103 35 80 78
RT18L
Type Assorted Fuse Number of poles Rated Insulation voltage(v) Conventional heating current(A) Dimension(mm)
A1 A2 B H1 H2
RT18L-63 14x 51 1,2,3,4 690 63 107 80 27 78 100
RT18-125 22x 58 125 126 134 36 78 104
HG30
Type Assorted Fuse Number of poles Rated Insulation voltage(v) Conventional heating current(A) Dimension(mm)
A1 A2 B H1 H2
HG30-63 14x 51 1,2,3,4 500 63 107 80 27 80 102
HG30-125 22x 58 125 140 110 36 90 109

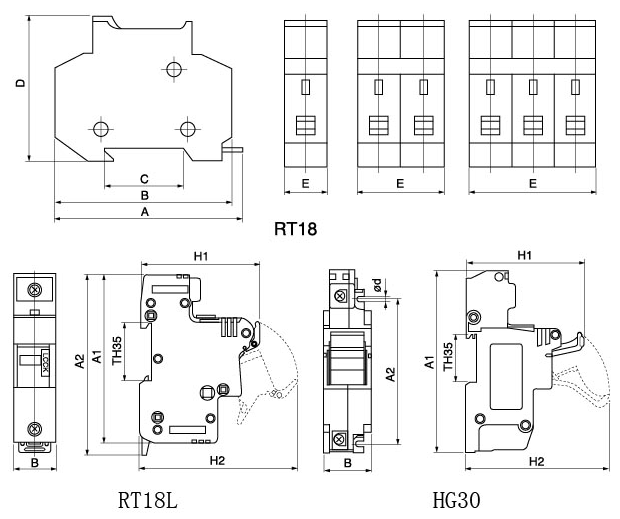

Dimension
